Ultrasonic Motor RUSR30 Series -
Ultrasonic Motor RUSR30 Series
RUSR30 series is a small Ultrasonic Motor for Built in.

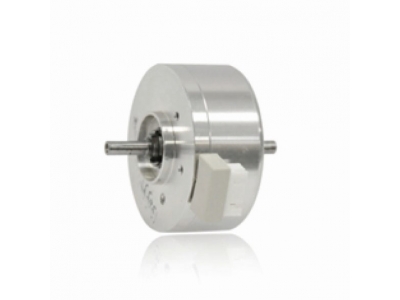

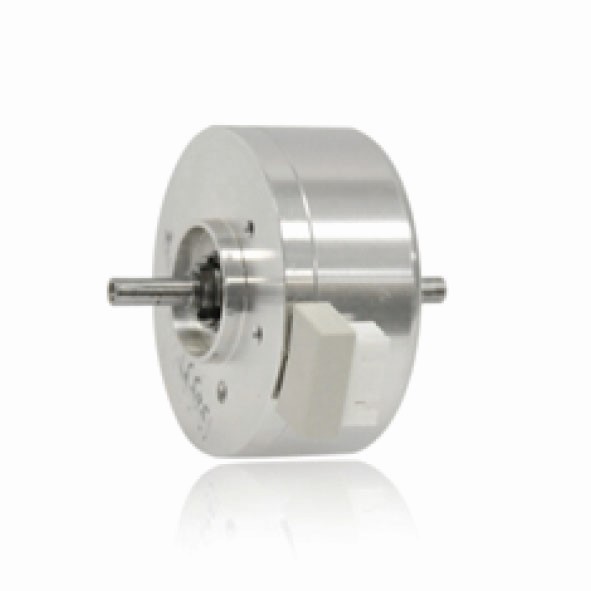

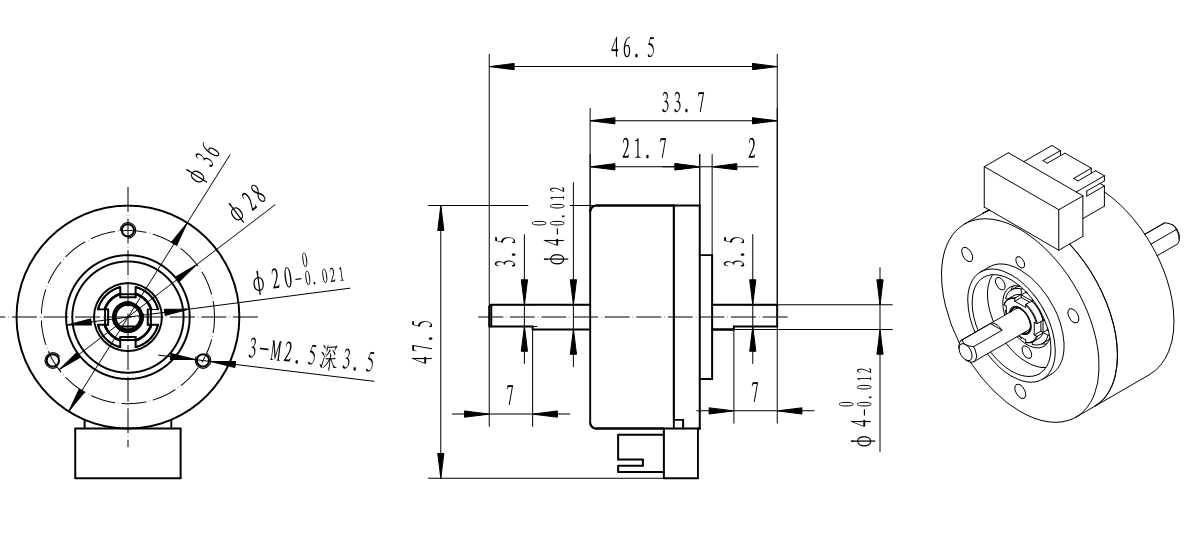

Double Shaft

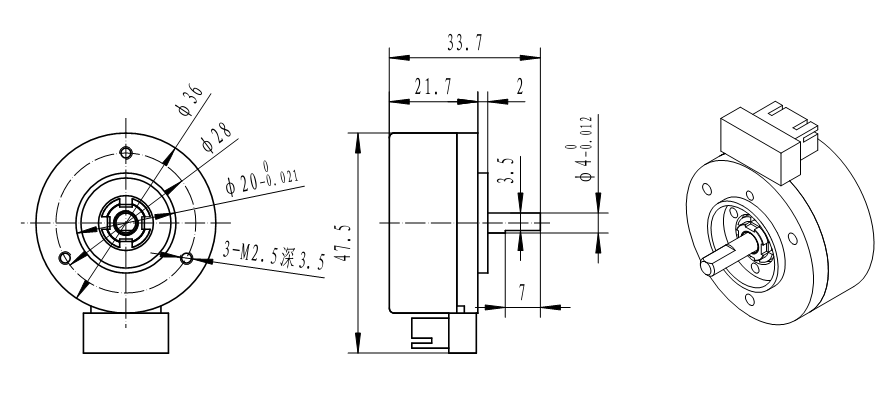

Single Shaft
| Model Name | RUSR30-S | RUSR30-D / RUSR30-DE |
|---|---|---|
| Drive Frequency | 35 [KHz] ～ 39 [KHz] | |
| Drive Voltage | 124[Vrms] | |
| Rated Output | 0.6 [W] | |
| Maximum Output | 1.2 [W] (by Maximum Load) | |
| Rated Speed | 140 [rpm] | |
| Maximum Speed | 250 [rpm] | |
| Rated Torque | 0.04 [N･m] | |
| Maximum Torque | 0.16 [N･m] | |
| Holding Torque | 0.16 [N･m] | |
| Response | Less than 1 [ms] ( No-load ) | |
| Direction of Rotation | CW, CCW | |
| Operational Temperature Range | -10 [℃] ～ +55 [℃] | |
| Operational Humidity Range | 0 ～ +45 [%] ( without condensation ) | |
Endurance Time | 2,000 [Hours] ( Sum of the time when the motor actually moved ) | |
| Weight | 48 [g] | 55 [g] |
| Remarks | Single Shaft | Double Shaft |
