      Ultrasonic Motor RUSR40 Series

      Single Shaft/Double ShaftModel Name:RUSR40-SRUSR40-D/RUSR40-DEDrive Frequency:40 [KHz] ~ 44 [KHz] Drive Voltage:141 [Vrms] Rated Output:1.5 [W] Maximum Output:3.0 [W] (by Maximum Load) Rated Speed:100[rpm]Maxi

      1. Detail

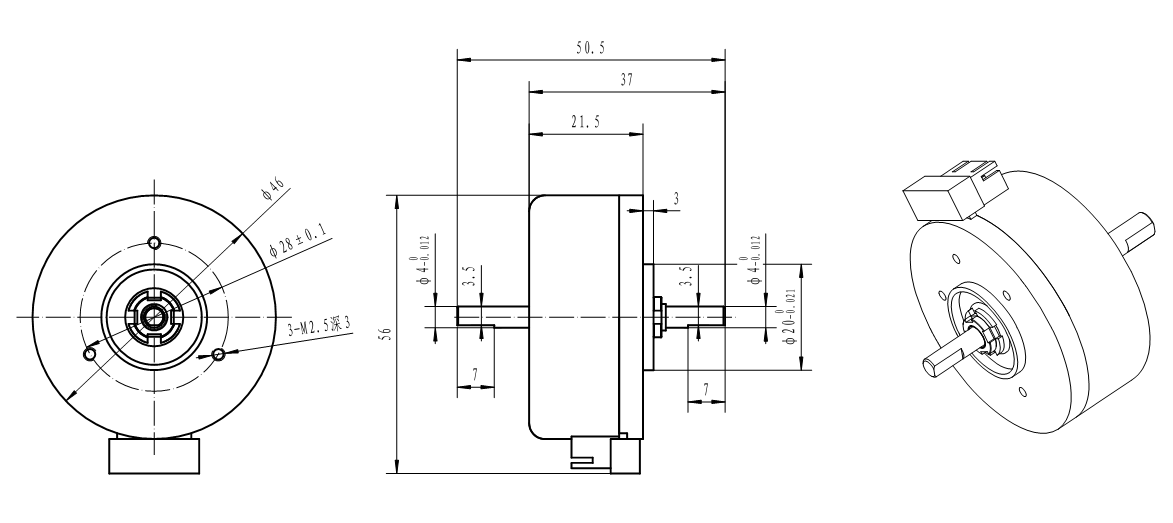

      Single Shaft

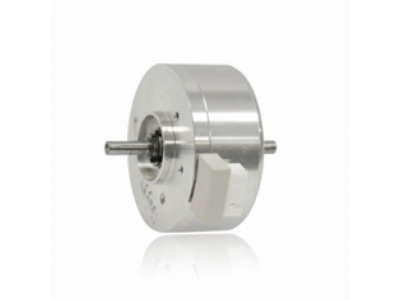

      Double Shaft




      Model NameRUSR40-SRUSR40-D / RUSR40-DE
      Drive Frequency40 [KHz] ~ 44 [KHz]
      Drive Voltage141 [Vrms]
      Rated Output1.5 [W]
      Maximum Output3.0 [W] (by Maximum Load)
      Rated Speed100[rpm]
      Maximum Speed200 [rpm]
      Rated Torque0.15 [N・m]
      Maximum Torque0.25 [N・m]
      Holding Torque0.15 [N・m]
      ResponseLess than 1 [ms] ( No-load )
      Direction of RotationCW, CCW
      Operational Temperature Range-10 [℃] ~ +55 [℃]
      Temperature LimitSurface of Stator 70 [℃]
      Operational Humidity Range0 ~ +45 [%] ( without condensation )

      Endurance Time

      2,000 [Hours] ( Sum of the time when the motor actually moved )
      Weight64 [g]70 [g]
      RemarksSingle ShaftDouble Shaft
